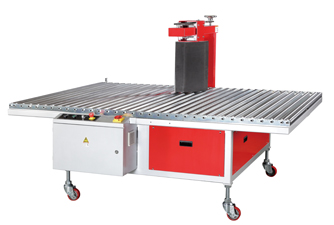

Fully automatic machine C-BT Bundle Turner for Corrugated Carton
Main Features
- Suitable for various bundle dimensions
- Adjustable table height from 700 mm and 1000 mm
- Up and down stream interlocks with complete plug connection
- Durable frame coated with power-coating finish
C-BT Bundle Turner is designed for turning the bundle for downstream strapping operation. It is an ideal machine for connecting the casemaking line to strap with carton flute.
| Techincal Data | |
|---|---|
| Table Dimensions | C-BT-L 1662 mm(W) X 2280 mm(D),C-BT-M 1662 mm(W) X 2302 mm(D) |
| Table Height | 700 ~ 1000 mm |
| Machine Net Weight | C-BT-L 560 kg C-BT-M 517 kg |
| Power Consumption | 0.5 kW |
| Minimum & Maximum Package Size | C-BT-L Max. 1420 mm (W) × 1420 mm(L) × 450 mm(H) Min. 200 mm (W) × 300 mm(L) × 20 mm(H) C-BT-M Max. 1100 mm(W) × 1100 mm(L) × 450 mm(H) Min. 200 mm(W) × 300 mm(L) × 20 mm(H) |
| Conveyor Speed | 10 ~ 55 m/min |
| Electrical Requirements | 110V, 220V, 230V 50/60Hz 1PH |
