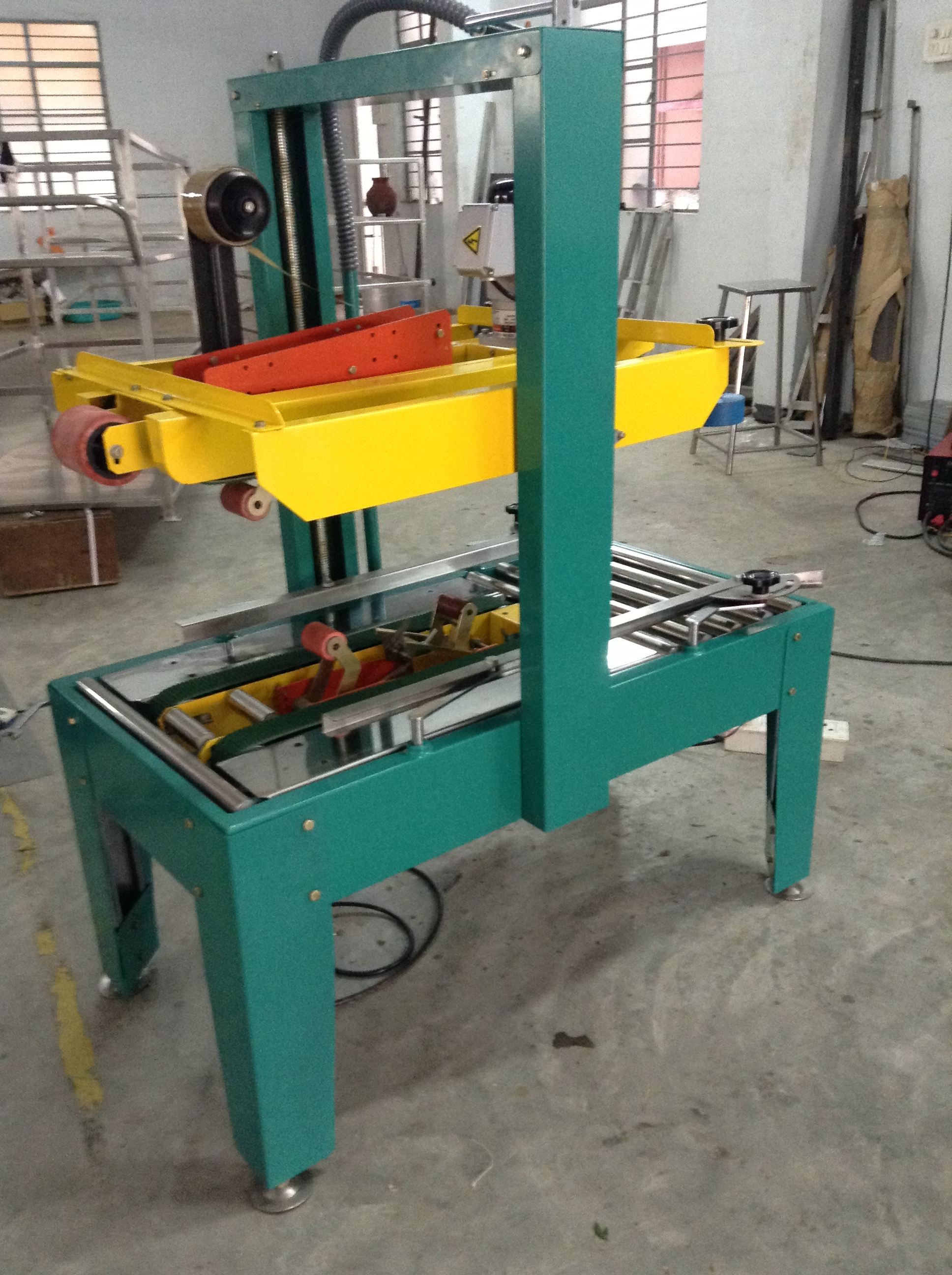

TPS-450 Semi-Automatic Carton Sealing Machine
TPS-450 Carton Sealing machines are manufactured for reliability and efficiency. Recommended for applications where the same sized cartons are sealed consequently. Designed for throughputs ranging from 10-14 cartons/min. depending on the size of the carton.
Main Features
- Ideal for batch production
- Twin mast column for greater stability during operation Separate top and bottom drive for perfect taping Uniform and controlled pressure during taping
- Twin flap squeeze rollers provides additional squeezing for perfect top flaps alignment
- Belt speed of 20 in/minute . Inbuilt tool box
- Self-centering side guides for accurate centering
- Positive top and bottom drive to ensure sealing of tall and heavy cartons, in addition to regular cartons
| Technical Data | |
|---|---|
| Taping Head | Standard (2"/2.5"/3") |
| Length | 1080 mm |
| Width | 570 mm |
| Weight | 143 Kg |
| Height | 1460 mm |
| Color | RAL 6000 & RAL 1021 Yellow(Moving Parts) |
| Drive Motor | 0.25 HP, 2 No. |
| Belt speed | 20 Metres/ Min |
| Machine Throughput | Belt speed/(Carton length+280 mm) |
| Utility requirements | |
| Air requirement | NA |
| Air consumption | NA |
| Power supply | 415 V AC, 3 Phase, 50 Hz |
| Power consumption | 0.36 KW 650 M/ 1000 M |
| Tap Roll length | 65 M / 650 M/ 1000 M |
| Case dimensions Length | 150 mm - Un Limited |
| Width | 160 mm -550 mm |
| Height | 100 mm -550 mm |
| Weight | 2- 50 Kg |
| Carton Ply | Min 3 Ply |
